Case Layout Calculator

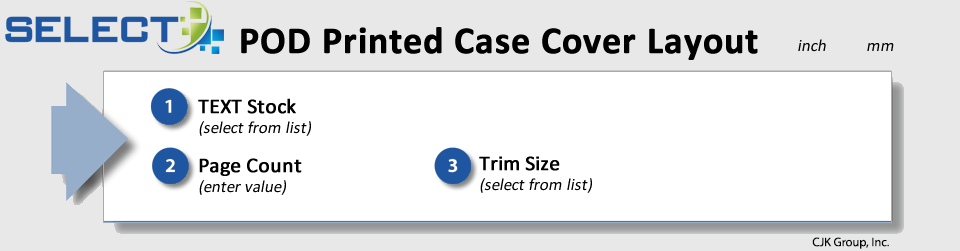

Layout Selection

layout diagram

Set document page size (and subsequent PDF TrimBox) to case size (case W x case H):       X

bar code Journals: 13mm square 2-D barcode applied to outside back cover for POD, located 15mm from right and
  bottom board edge.


To place all marks required (shown in red on layout above) and maintain correct trim box assignment, please do the following:

  • Set the document page size to case size, as shown above.
  • Draw marks (except case edge marks) to the specifications shown and locate 1/32″ (0.03125 inch) or 0.794 mm inside trim area.
  • All marks are to be 1/4 point (0.25 point) rule and Registration (Spot All) color.
  • When exporting to PDF turn crop marks on.
